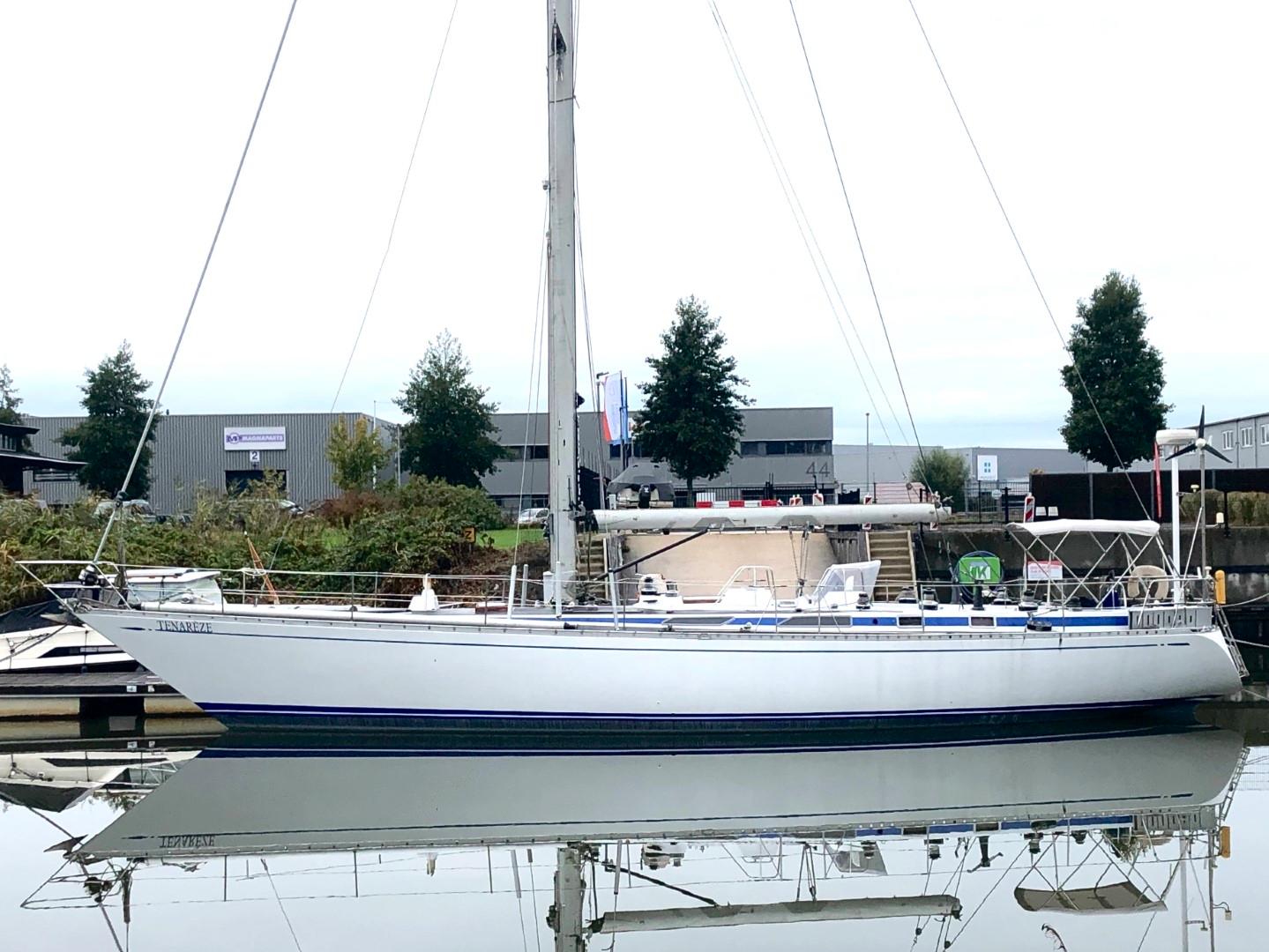

1979 Nautor Swan 5718m

CONSTRUCTION

RCD Status:

• RCD Status: Our understanding is that the yacht is exempt from the essential safety requirements of Directive 94/25EC (Recreational Craft Directive) as she was built and placed into use within the EU prior to 1998.

Hull Construction:

• GRP laminate hull construction
• The hull is built of single skin construction. A high proportion of the fibres are unidirectional, giving a stiff laminate with excellent strength and fatigue properties.
• Awlgrip white painted topsides
• Awlgrip antifouling, primer and new anodes - 2022

Deck & Superstructure Construction:

• GRP deck and superstructure construction with closed cell foam core
• Teak decking to side decks, cockpit and coachroof top

Keel & Rudder:

• The fin keel with keel ballast is cast lead alloyed with antimony.
• Cast-in keel bolts are of high-tensile stainless steel.
• Rudder - Foam-filled fibre glass constructed with a high tensile tubular stainless steel stock

MACHINERY

Engine & gearbox:

• Perkins Sabre 1100 4-cylinder naturally aspirated diesel engine producing 87hp - 2005
• Engine control via single lever control
• Freshwater cooling with heat exchanger and raw water intake and strainer.
• ZF Hurth mechanical reverse gearbox
• Date of last engine service – 2020

Propulsion & Steering:

• Shaft drive with stainless steel shaft driving supported by p-bracket
• MaxProp 3-bladed feathering propeller
• Nautor helm pedestal with cable steering controlled by stainless steel wheel
• 24vDC Bowthruster

ELECTRICAL SYSTEMS

Voltage systems:

• 24v DC service and engine start battery circuits.
• DC & AC panel at navigation area with battery monitor system.
• 220vAC supplied by shore-power or inverter
• Heart Interface Link 2000 remote control

Battery Banks:

• 12vDC engine start battery
• 24vDC service battery bank

Charging/Inverter:

• Mastervolt Chargemaster 24/40-3 40-amp 24vDC battery charger
• Mastervolt inverter/charger with remote control

Alternators:

• 12vDC engine mounted alternator for the engine start batteries
• 24vDC engine mounted alternator for the services batteries

Wind Generator:

• Wind generator on transom pole

Other Electrical:

• 110v/220v AC shore-power supply

PLUMBING & GAS SYSTEMS

Fresh Water:

• Pressurised hot & cold water system using 24v DC pressure pump assisted by pressure accumulator
• Water heated engine driven calorifier with 220v AC immersion element in well-insulated hot water tank.
• Hot & cold pressurised water supplies to galley and heads.

Watermaker:

• PowerSurvivor 160 reverse osmosis watermaker

Bilge Pumps:

• Electric bilge pump
• Manual bilge pump
• Electric shower drain pumps

TANKAGE

Fuel:

• 570 litres fuel capacity in two stainless steel tanks

Fresh Water:

• 600 litres fresh water capacity in four stainless steel tanks

NAVIGATION & COMMUNICATION EQUIPMENT

In Cockpit:

• Raymarine A50 chart plotter
• Raytheon radar scanner on transom antenna pole
• Raytheon ST6002 autopilot control head
• Raymarine ST60 speed/log/depth/wind displays
• Suunto steering compass

At Chart Table:

• Raymarine S100 remote control for autopilot
• Raymarine E120 radar/chart plotter display =
• Raymarine AIS transponder – 2021
• GP-200 GPS receiver
• B&G Hydra display
• Target Navtex

Communications Equipment:

• Icom IC-M700 HF radio
• Icom IC-M421 VHF radio
• Iridium satellite phone system

DOMESTIC EQUIPMENT

Galley:

• ENO 4-burner stainless steel gimballed gas stove with oven
• Side/top opening refrigerator
• Top loading freezer
• 2x Stainless steel sinks with hot & cold water supply.
• Manual water supplies

Heads:

• Electric heads to aft heads
• Manual marine heads to forward heads
• Hot & cold pressurised showers

ACCOMMODATION

Summary of Accommodation:

• 10 berths in 4 cabins plus saloon.
• 2 heads compartments.
• Burma teak interior joinery made up of faced marine plywood with solid teak where appropriate
• Forward guest cabins and heads refinished in white American style - 2022
• Teak battening to exposed hull sides.
• Teak soleboards
• White vinyl headlinings with teak trim - 2022
• Upholstery in saloon and accommodation cabin replaced – 2021
• Forepeak upholstery replaced - 2022

Description of Accommodation from Forward:

Forward Cabin

• V-berth with fold-up pipecots and storage bins beneath. Access to deck through deckhead hatch. Teak slats on floor.

Forward Heads

• Heads aft of forward cabin to starboard. Stowage lockers to port.

Forward Starboard Cabin

• 2x single bunk beds
• 3x lockers forward plus further lockers and drawers aft

Port Forward Cabin

• Walkthrough cabin to forepeak
• 2x single bunk beds
• Lockers and drawers forward
• 4x lockers outboard

Saloon

• U-shaped settee to starboard surrounding large dining table
• Straight settee to port
• Pilot berth outboard of port settee with stowage beneath
• Drinks locker forward to port
• Further lockers and bookcases

• Aft of saloon to port
• Twin stainless steel sinks
• Gimballed stove
• Fridge and freezer
• Lockers and drawers

Navigation Station.

• Aft of saloon to starboard
• Forward facing chart table with seat
• Drawers and lockers

Aft Cabin

• The aft cabin/master aft stateroom has a wide singleberth to port and a single berth to starboard.
• Infill to create large double.
• 2x hanging lockers
• Lockers and drawers.

Aft Heads

• Electric marine heads.
• Wash basin and a shower pan with teak grating.

DECK EQUIPMENT

Rig:

• Keel stepped Nautor aluminium anodised mast
• Masthead rig with 2-sets of inline spreaders
• Stainless steel rod capshrouds and wire remaining rigging – V3 rods replaced 2021/2
• Navtec hydraulic adjuster for backstay and vang – serviced 201/2
• Aluminium rigging screw protectors
• Fredriksen battencar system for mainsail
• Furlex 400S manual genoa furler
• Removable inner forestay for staysail with highfield lever
• Genoa and staysail tracks
• Spinnaker track on mast with 2x bayonet fittings
• Spinnaker pole
• Mast sheaves replaced 2021/2
• Dyneema halyards – 2021/2
• I = 21.95m, J = 7.16m, P = 19.77m, E = 5.79m

Winches:

• 4x Lewmar 65ST 2-speed self-tailing primary and secondary winches with coffee grinder
• 2x Lewmar 44ST 2-speed self-tailing checkstay winches
• 2x Harken 53ST 2-speed self-tailing main traveller winches
• 2x Lewmar 55ST 2-speed self-tailing halyard winches on coachroof
• 2x Lewmar 48ST 3-speed halyard winches on coachroof
• 2x Lewmar 44ST 2-speed self-tailing control line winches
• 1x Lewmar 48ST 2-speed self-tailing halyard winch in mast
• 1x Lewmar 16 outhaul winch on boom

Sails:

• Dacron fully battened mainsail
• Dacron furling genoa
• Dacron battened hank-on staysail

General:

• Stainless steel pushpit, pulpit and guardrail stanchions with side exits.
• Swimming ladder
• Cockpit shower
• Dorade vents (replaced 2022) with stainless steel dorade pulpits
• Deckhead hatches replaced - 2022

Anchoring & Mooring:

• Lofrans Falcon 24v 1500w electric anchor windlass
• 35kgs CQR anchor with chain
• Mooring warps and fenders

Covers, Cushions & Canvas:

• Lazybag – 2022
• Deck covers - 2021
• Sprayhood - 2021
• Bimini – 2021
• Cockpit cushions - 2022

Tender:

• 2.5m inflatable tender

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
